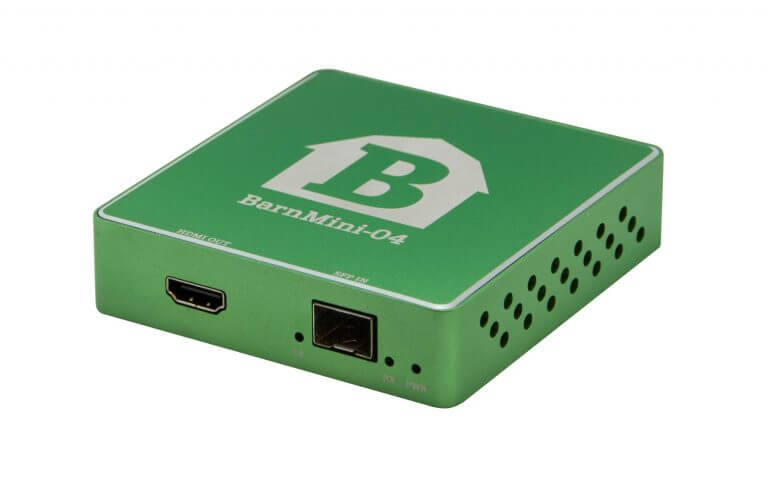

The BarnMini-04 takes your optical SDI signal and convert it to a HDMI signal. This gives you a great flexibility in designing different monitoring solutions.
Description
The BarnMini-04 is very often used as a standalone unit. As any of our other BarnMini modules, the BarnMini-04 is also operational from 5V to 24V. As any of our other BarnMini modules, the BarnMini-04 brings unparrelled flexibility and it can serve several tasks.
Technical Specifications
- Fiberoptical port (SFP) , Duplex transcievers , LC/PC connectors (optional HDMI, HD-BNC, RJ45)
- SMPTE 259M, 292M, 372M, 424M, 297M, DVB-ASI
- Multirate reclocking of outputs 270Mbit/s – 3Gbit/s
- Hot pluggable/swappable
- Singlemode and/or Multimode
- 18 CWDM wavelength selections – ITU-T G.694.2
- 12-24V DC. Power supply included
- 92mm x 98mm x 22mm
- 200g
- BM-04
Use cases:
STAGE BOX ROUTING SYSTEM EXAMPLE
Additional information
| FIBER MODE | Single Mode |
|---|---|
| FIBER TYPE | 3G, Eithernet, Tally, Throw-Down Brick |
| LIGHT WATT POWER | 1-100w |
