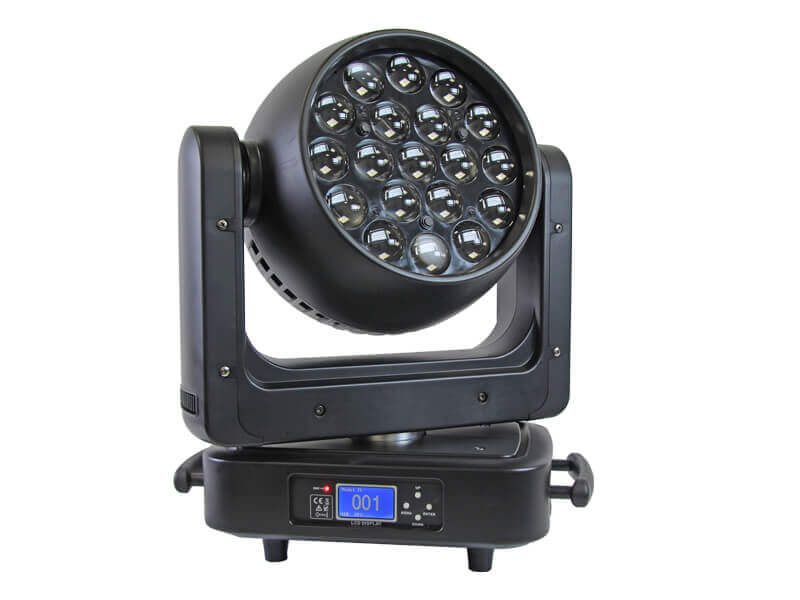

GL-LMVpl-SW1915Z-rgb-475ws/ln

Description

Features

• Extremely small, fast and powerful LED Moving Head Beam Zoom Light;
• Wide zoom range from 10degree to 60degree;
• Great built-in lighting shows programs under master/slave mode;
• Blue LCD display for easy navigation;
• Perfect for stage, theatre, TV, studio, rental and discotheques.

Technical Specifications

Light Sources

• LED:475W 4in1 LED lamps
• Lifespan: 50, 000h
• Color: RGBW 4in1 colorful

Optics

• Beam angle: 10-60degree
• Dimmer: 0-100% linear dimmer
• Strobe: 1-25 times/second

Light Output

• Illuminance: 108500 Lux (full @1m 15°)
• Optimal projection distance: 4-50m

Movement

• Pan(X axis): 540degree
• Tilt(Y axis): 270degree

Control

• Control mode: DMX-512; Mater/slave mode; Demo mode
• DMX channel: Martin 14CH, 27CH; or 15CH(with CTO), 27CH
• Display of control panel: LCD display, four buttons

Power Supply

• Related voltage: AC100V-240V, 50/60Hz
• Related power: 500W

Construction

• Body dimension: D325*W188*H395mm
• Net weight: 9.2kg
• Shell color: black
• Shell material: ABS

Working Environment

• Working temperature: -25-40℃



Light Sources
LED	19pcs original OSRAM 25W 4in1 LED lamps
Lifespan	50, 000h
Color	RGBW 4in1 colorful
Optics
Beam angle	10-60degree
Dimmer	0-100% linear dimmer
Strobe	1-25 times/second
Light Output
Illuminance	108500 Lux (full @1m 15°)
Optimal projection distance	4-50m
Movement
Pan(X axis)	540degree
Tilt(Y axis)	270degree
Control
Control mode	DMX-512; Mater/slave mode; Demo mode
DMX channel	Martin Aura 14CH, 27CH; or 15CH(with CTO), 27CH
Display of control panel	LCD display, four buttons
Power Supply
Related voltage	AC100V-240V, 50/60Hz
Related power	500W
Construction
Body dimension	D325*W188*H395mm
Net weight	9.2kg
Housing color	Black
Housing material	ABS
Working Environment
Working temperature	-25-40℃
Cooling	Fan
Protection rating	IP20
